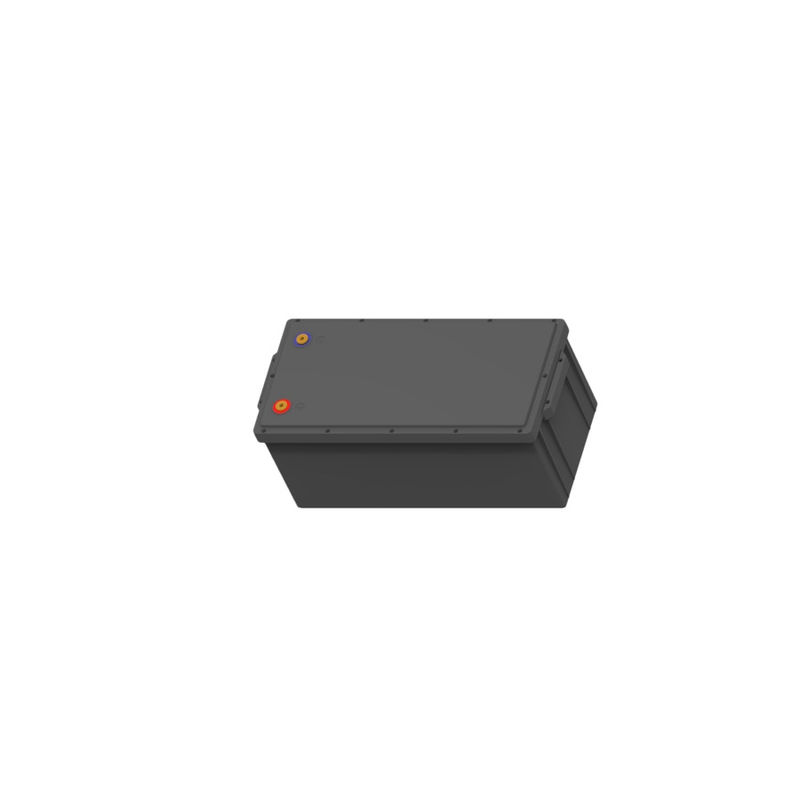

The 51.2V 150AH forklift lithium - ion battery serves as the core power source for the efficient operation of electric forklifts. With its outstanding performance, it is widely used in various fields such as warehousing logistics and manufacturing, becoming the preferred power solution in the modern material handling industry.
PRODUCT INFORMATION
|
Item
|
Specification
|
|
Nominal Voltage
|
24V/36V/48V/60V/70V/72V/80V
|
|
Nominal Capacity
|
100Ah-1000Ah
|
|
Nominal Energy
|
2560Wh-80000Wh
|
|
Dimension
|
Customized
|
|
Approx. Weight
|
Customized
|
|
Life Cycles
|
≥5000 cycles
|
|
Charge Voltage
|
29.3V-91.3V
|
|
Discharge Cut-off Voltage
|
20V-62.5V
|
|
Max. Continuous Charge Current
|
100A (Customized)
|
|
Max. Continuous Discharge Current
|
100A 200A 300A (Customized)
|
|
Peak Discharge Current
|
600A (Customized)
|
|
Charge Temperature
|
0 ~ 45°C (32 ~ 113°F)
|
|
Discharge Temperature
|
-20 ~ 55°C(-4 ~ 131F)
|
|
Storage Temperature
|
-10 ~ 45°C(14 ~ 113°F)
|
|
Communication Mod
|
Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication
|
|
|
* R&D team with experienced engineers and designers
* OEM&ODM professionals
* Multiple production lines and multiple production workers
* Strict control of product quality, high quality control
* Production integration
|
Working Principle and Structure
The 51.2V forklift battery converts chemical energy to electrical energy. In lithium - ion batteries, lithium ions move between electrodes during charging and discharging, with electrons flowing through the external circuit to power the forklift. These batteries use multiple series - connected cells to reach 51.2V. Typically, 13 or 14 cells are used, and cell quantity/type determines capacity and performance. An advanced Battery Management System (BMS) monitors voltage, current, and temperature. It regulates charging/discharging, ensuring stable performance and safe operation.
Core Performance
Power & Endurance:
51.2V/150AH outputs stable, strong current, enabling forklifts to handle heavy loads, slopes, and frequent stops. In large warehouses, it supports 4 - 6 hours of continuous work, reducing battery - related downtime.
Fast Charging:
With dedicated chargers and advanced tech, it fully recharges from low in 2 - 3 hours. Forklifts can quickly charge during breaks, enhancing operational efficiency.
Long Lifespan:
Built with high - quality cells and strict processes, it endures 1500 - 2000 charge - discharge cycles, outlasting lead - acid batteries by 2 - 3 times and cutting maintenance costs.
Technical Advantages
Intelligent Battery Management System (BMS): It is equipped with an advanced BMS. This system can precisely monitor key parameters of the battery in real - time, including voltage, current, temperature, and charge - discharge status. Once it detects abnormal situations such as overcharging, over - discharging, overheating, or short - circuiting, the system will immediately activate the protection mechanism to cut off the circuit, preventing battery damage and safety accidents. Meanwhile, the BMS also has a power prediction function, which can accurately estimate the remaining power and battery life, facilitating operators to arrange work tasks reasonably.
Environmental - friendliness and Energy - saving: The battery does not contain harmful heavy metals and is environmentally friendly during the production, use, and disposal processes, meeting the increasingly strict global environmental regulations. Compared with lead - acid batteries, lithium - ion batteries have higher energy conversion efficiency, reducing energy waste and helping enterprises achieve green and low - carbon operations.
