Custom Lithium Battery
>
24V 125AH Lifepo4 Forklift Battery High Energy Density Rapid Charging

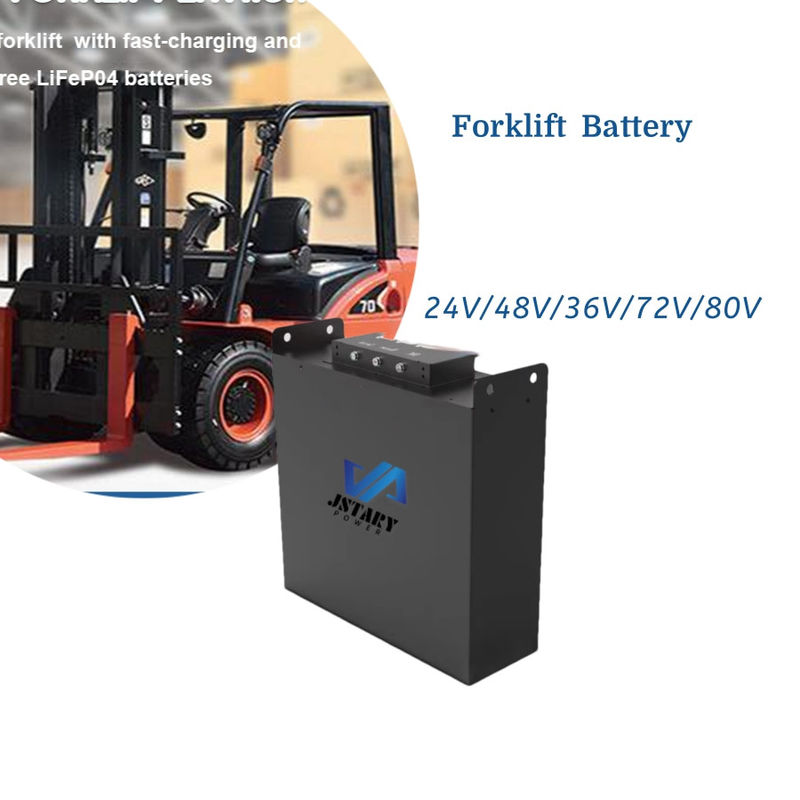

24V 125AH Lifepo4 Forklift Battery High Energy Density Rapid Charging

Product Details:
Place of Origin: China
Brand Name: JSTARY
Certification: UN38.3 MSDS CE
Model Number: JF-24125
Detail Information
Place of Origin:
China
Brand Name:
JSTARY
Certification:
UN38.3 MSDS CE
Model Number:
JF-24125
Highlight:

High Light

Highlight:

24V 125AH Lifepo4 Forklift Battery

,

High Energy Density Lifepo4 Forklift Battery

,

Rapid Charging Lithium Forklift Batteries

Trading Information
Minimum Order Quantity:
2
Price:
USD 399.99
Packaging Details:
Ship safely in wooden crates or cardboard boxes.
Delivery Time:
5 - 7 working days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
1,000 items per week
Product Description




24V 125AH Lifepo4 Forklift Battery High Energy Density Rapid Charging 0




The 24V 125Ah forklift lithium battery is commonly used in light-duty electric forklifts and is widely applied in various warehouses, small logistics centers, as well as some indoor operation places with relatively low requirements for space and load capacity. For instance, in the small-scale warehousing and distribution centers of e-commerce enterprises, this type of battery can provide power for electric pallet forklifts, meeting the demand for frequent cargo handling within narrow passages.




24V 125AH Lifepo4 Forklift Battery High Energy Density Rapid Charging 1






Product Parameters



Type
   24V125AH
Available Electricity
3.22 KWH
Rated Capacity
125Ah
Rated Voltage
25.6V
Operating Voltage Range
20.8V~29V
Rated Charge and Discharge Current
0.5C/1C
Peak Current
3C(30s)
Rated Charging and Discharging Power
1.5KW
Peak Power
9KW
Short-Circuit Current
OPTIONAL
Cycle Life
≥3500 Cycle, 80%DOD,
Communication Mode
CAN, RS485, RS232




24V 125AH Lifepo4 Forklift Battery High Energy Density Rapid Charging 2





Performance Characteristics



Energy Supply

The combination of a voltage of 24V and a capacity of 125Ah can provide a stable power output for the forklift, enabling the forklift to operate continuously for several hours.


Charging Efficiency

 Matching with advanced charging technology, this type of battery usually has a relatively fast charging speed. Generally, a dedicated lithium battery charger is used. In the fast charging mode, the battery can be charged from a low power level to a full charge in about 2 to 3 hours, greatly improving the utilization efficiency of the forklift and reducing the charging waiting time, allowing the forklift to quickly enter the next round of work.

Cycle Life

 In actual use, this model of lithium battery undergoes strict quality control and testing, and has a high cycle life. Under normal circumstances, it can withstand more than 1,000 complete charge-discharge cycles, which means that under normal usage conditions, the battery can be used for several years without the need for replacement, reducing the usage cost and maintenance frequency.

Safety Performance

 The 24V 125Ah battery fully considers safety during the design and manufacturing process. It adopts an advanced Battery Management System (BMS), which can monitor parameters such as the battery voltage, current, and temperature in real time. Once an abnormal situation is detected, it will immediately take protective measures, such as cutting off the circuit, to prevent problems such as overcharging, over-discharging, and overheating, effectively avoiding safety accidents such as battery fires and explosions. At the same time, the battery casing usually uses fireproof and flame-retardant materials, further improving the safety during use.



24V 125AH Lifepo4 Forklift Battery High Energy Density Rapid Charging 3





Advantages


Environmental Protection and Energy Conservation: Compared with traditional lead-acid batteries, the 24V 125Ah lithium battery is more environmentally friendly. It does not contain harmful heavy metals and causes less pollution to the environment during the production, use, and waste disposal processes. Enterprises in many European countries tend to choose this environmentally friendly battery to reduce the environmental impact and enhance the corporate social image.


Lightweight Design: The lithium battery itself is relatively light in weight. The 24V 125Ah lithium battery is much lighter than a lead-acid battery with the same capacity. This helps to reduce the overall weight of the forklift, improve the handling performance and flexibility of the forklift. At the same time, it also reduces the pressure on the ground, making it suitable for places with limited ground bearing capacity, such as warehouses renovated from old buildings.



Intelligent Management: The 24V 125Ah forklift lithium battery is usually equipped with an intelligent management system. By connecting with the forklift's control system, it can display information such as the battery's power level, remaining working time, and charge-discharge status in real time, which is convenient for operators to understand the battery situation in a timely manner and arrange work tasks reasonably. At the same time, the battery management system can upload data to the cloud, which is convenient for enterprises to conduct remote monitoring and management, and achieve centralized scheduling and optimized use of forklift batteries.
